TINTEAN TECHNICAL
SOUND
Mixing Console
FOH Speaker System
3 co-axial bi-amped XT 112’s( Left, Right And
Centre) - 2 Subwoofer XT 118’s - 4 Delay 2 way
MTD 108’s
Amplifiers for above
4 Way Stage Monitor System
Stage Monitor Amplifiers for above
Loudspeaker System Controller For Monitor System
4 No. Dynamic Mics
2 No. DI Boxes
4 Mic Boom Stands
MAKE
Behringer X32 Digital
L-Acoustic – XT & MTD Range. Processing by 1 XTA
DP 226, XTA DP 224 and MTD 108 LLCa Controllers
4 L-Acoustic La 24a’s & 1 L-Acoustic La 15a
4 L-Acoustic MTD 108’s 2 way passive & 1 XT 112 Bi-amped
1 L-Acoustic La 15a 4 CH amp & 1 L-Acoustic La 24a
2 L-Acoustics MTD 108 LLCa Controller & 1 XTA
DP 224
4 Shure SM 58's, 2 Shure SM 57's & 1 Shure Beta 57
DAP Audio
3 Large / 2 Small

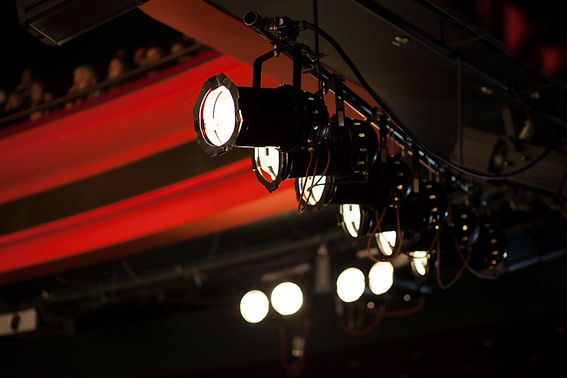

LIGHTING
(Dimmer System is down for maintenance. Desk + Hot Lights current being upgraded & converted to LED)
1no. Basic Desk – ShowTec
4no. Avolites art 2000i (4*24) dimmer & patching system
1no. dmx universe & booster system
12 no. Showtec hmi 575 profiles various degree angles
2 no. Robert juliat 1.2kw profiles
10 no. Showtec 1kw fresnels
8 no. Thomas par cans
1no. Griven hmi575 followspot
3no. 6m internally wired bars
18no. socapex circuits around stage
6no. 6 way 220v points
1no Source aqua haze machine c/w control & timer
1no. stock of socapex,dmx & breakout leads
10no. assorted gels
STAGE DIMENSIONS
Proscenium Width
Stage Depth
Apron
Stage Width
Stage Dimensions Front to back (CS)
Curtain (CS) to back wall
Height of stage
Maximum performance area
Grid Height Space on Ground Floor Level for
Orchestra/ Rostra
FLYING AND RIGGING
Motorised Set
Control
Hemp Sets
Suspension Bars
Suspension Bars
Suspension Bars
Side Lighting Bars
Tracks: 1st Front of House Track 1
Tracks:2nd Front of House Track 1
Tracks: Back of Stage
Drapes
Drapes
Drapes
Drapes
2 Nos Borders
Projection Screen & Frame
Masking
Cyclorama
Sharkstooth Gauze
Dance Floor
LOOSE EQUIPMENT
Staging Units Rostra
Stage Skirt
Lighting Ladders
Stage Braces and stage weight
12 No. Stage Braces
12 No. Stage Weights
12 No. 48mm Boom Arms
15 meters
7 meters
1 meter
14 meters
9.5 M
8.5 M
5.8 meters
14m x 7 meters
16 meters
4 Nos.
6 motorised winches
5 Nos Hemp sets
6 Nos.
5 Nos. hemp sets & 1 Drill set
6 Nos. dead line fixing bars
2 Nos. located FOH mid level SL & SR
1 No. med/heavy duty overlapped Triple E-track
1 No. light/med. duty single swipe track system
1 No. med/heavy duty overlapped Triple E-track
2 Nos front of house drapes
1 No. Pelmet
1 No. Mid stage tabs
1 No. Back stage tabs
2 Nos Borders
1 No. 10mtr x 4.2mtr alum. Ladder
6 Nos.
Yes
Yes - Black
Yes - Marley Black
4 Nos 1m x 2m with 28-40cm & 40-60cm legs
1 No. 14m x 0.6m
1 No.
12 Nos.
